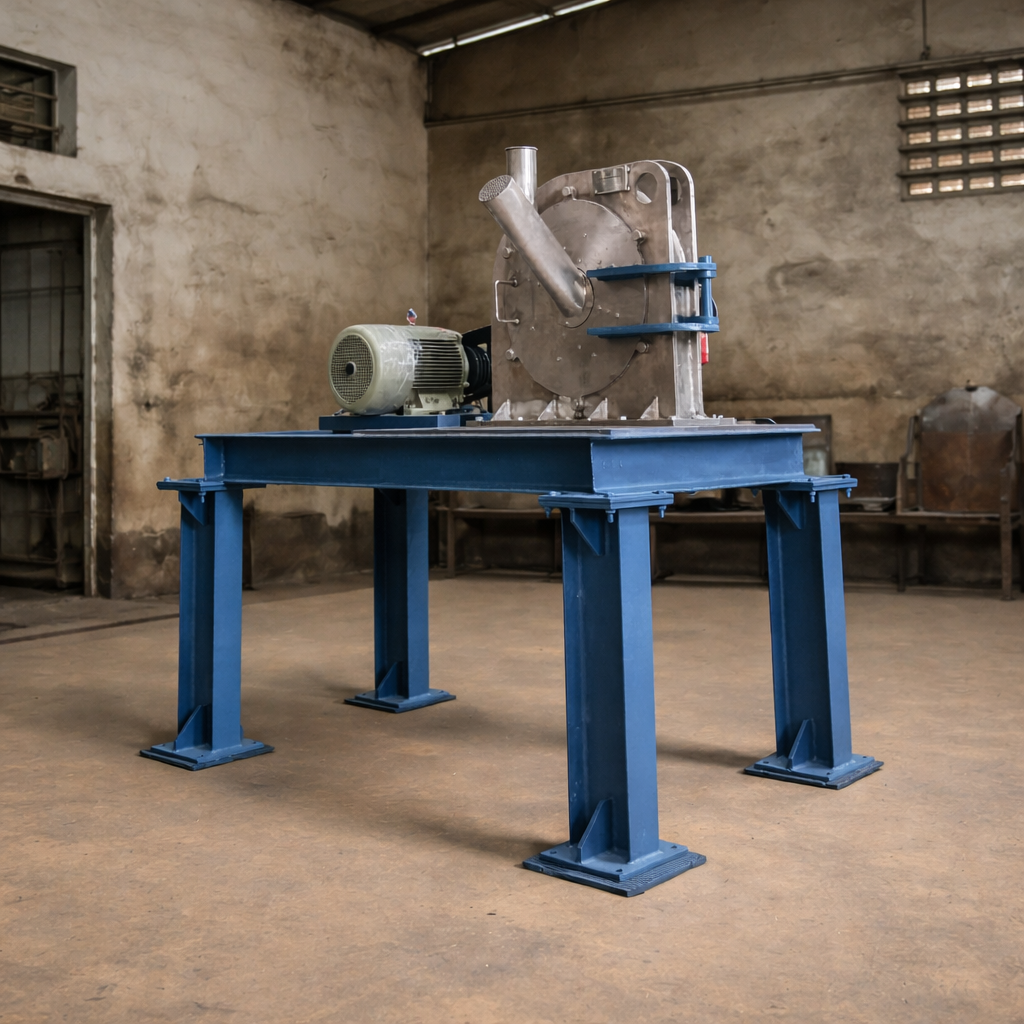

A pin mill machine is a type of size-reduction (grinding) equipment used to pulverize, disintegrate, or micronize materials into fine powders. It is widely used in the food, pharmaceutical, chemical, mineral, and agricultural industries.
How a Pin Mill Works
A pin mill consists of two discs fitted with rows of hardened steel pins:
- One disc is usually stationary.
- The other disc rotates at high speed (sometimes both discs rotate in opposite directions).
Material enters the center of the mill and is accelerated outward by centrifugal force. As it passes through the pins, it experiences:
- Impact forces
- Shearing forces
- Turbulence
These forces break the particles into smaller sizes before they exit through the discharge outlet.
Main Components
- Feed hopper
- Grinding chamber
- Rotating pin disc (rotor)
- Stationary pin disc (stator)
- Drive motor
- Product outlet
- Collection system (cyclone, bag filter, or collector)
Working Principle
- Raw material is fed into the mill.
- The rotor spins at high speed (often several thousand RPM).
- Particles collide with the pins and with each other.
- Repeated impacts reduce particle size.
- Fine powder exits the machine and is collected.
Applications
Food Industry
- Sugar grinding
- Spice grinding
- Flour processing
- Starch modification
Pharmaceutical Industry
- Active pharmaceutical ingredients (APIs)
- Excipients
- Herbal powders
Chemical Industry
- Pigments
- Resins
- Fertilizers
- Detergents
Advantages
- Produces fine and uniform particle sizes.
- High throughput capacity.
- Relatively simple design.
- Suitable for heat-sensitive materials when operated with cooling air.
- Easy cleaning and maintenance.
